    Infrared Sensor Wall Mounted Gas Detector 0-10000ppm CH3Br Bromomethane

    Ask Lasest Price
    Brand Name : SZYUANTE
    Model Number : YT-95H
    Certification : ATEX/CE
    Price : Negotiable
    Payment Terms : T/T, Western Union
    Supply Ability : 100 pieces/week
    Delivery Time : 3-5 working days
    • Product Details
    • Company Profile

    Infrared Sensor Wall Mounted Gas Detector 0-10000ppm CH3Br Bromomethane

    0-10000ppm CH3Br Bromomethane Wall-mounted Gas Detector Infrared Sensor


    Product Profile

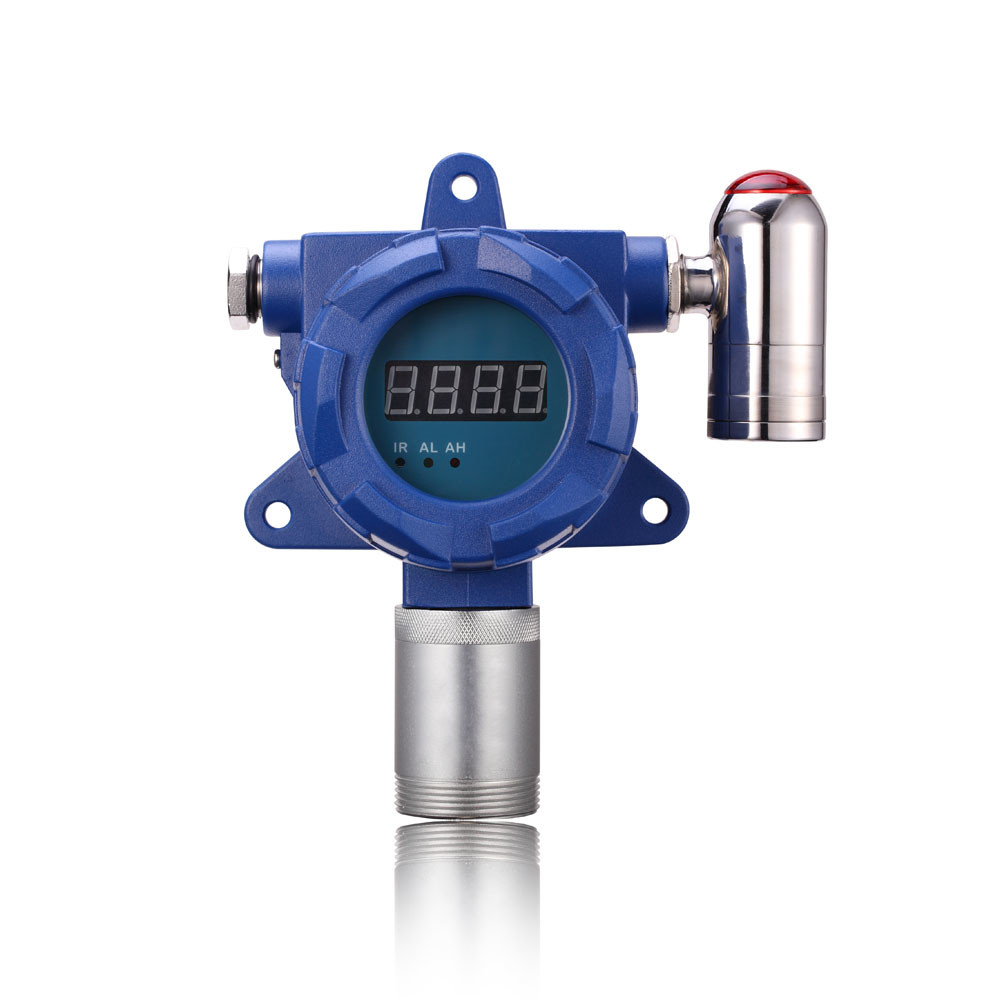

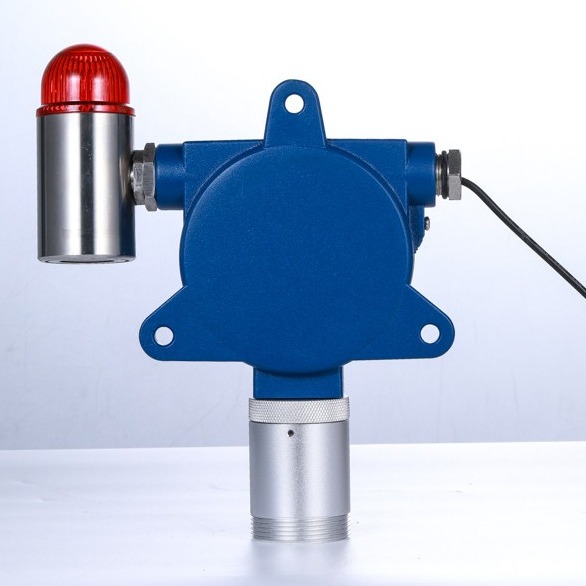

    The YT-95H series gas detector (with alarm light) is a wall-mounted gas detector that continuously monitors gas concentrations in different locations or pipelines for 24 hours. It utilizes the world's first-brand sensors and advanced microprocessing technology, boasting data display and high/low alarm functions, a fast response speed, high accuracy, and excellent stability. The detector has a 24V DC power supply and provides 4-20mA, RS485, and relay signal outputs. It is explosion-proof and suitable for various applications.

    Infrared Sensor Wall Mounted Gas Detector 0-10000ppm CH3Br Bromomethane

    Infrared Sensor Wall Mounted Gas Detector 0-10000ppm CH3Br Bromomethane


    Features

    • Working voltage: 12-36V DC
    • Dual sound and light alarm, alarm points can be set.
    • Infrared controller can remotely control alarm point settings, zero point calibration, and address modification.
    • Can output one or two switch signals and drive external devices such as ventilation fans or solenoid valves.
    • Shell: die-cast aluminum + stainless steel (with alarm light)

    Product Advantages

    1. The explosion-proof design is fast, reliable, and stable, with an explosion-proof grade of Ex dⅡCT6.
    2. The equipment is equipped with a self-calibration function, and three standard keys will be used to achieve on-site maintenance.
    3. The equipment is compatible with all types of controlled alarms, PLC, DCS, and other control systems, allowing remote monitoring.

    Specification


    Gas detectedCH3Br
    Detection principleInfrared
    Install methodWall-mounted (according to the detected environment)
    Measure range0-10000PPM, 0-20000PPM, 0-200g/m3
    ResolutionCustomized
    Precision± 2-5% FS
    Signal output4-20mA, 0-5V, RS485, relay(optional)
    Response time≤10SRecovery time≤10S
    Repeatability≤±1%Linearity error≤±1%
    Zero shift≤±1%(FS/year)DisplayHigh-light nixie tube display
    Connection modeG1/2 external thread explosion-proof flexible pipeUnitppm, mg/m³, %vol
    Temperature-20 to 50°CHumidity0-95%RH
    Explosion-proofEx dⅡCT6Degree of protectionIP65
    AlarmSound, lightOperating time24H
    Dimensions180*150*90mmWeight≤2kg

    Product Application


    1. Industrial manufacturing: YT-95H can be used to monitor toxic and explosive gas concentrations in factories, mines, oil refineries, and other industrial facilities. They are used to protect workers from toxic gases and prevent explosions.
    2. Environmental monitoring: YT-95H can be used to monitor air quality in cities, buildings, and other closed environments. They can detect pollutants such as carbon monoxide, nitrogen oxides, and volatile organic compounds to ensure clean air and reduce the harm to human health.
    3. Agriculture:YT-95H can be used to monitor the concentration of harmful gases in greenhouses and animal farms to protect crops and livestock from poisoning.
    4. Hazardous locations: YT-95H are suitable for use in explosive and corrosive environments, such as chemical plants, refineries, and offshore platforms. They can monitor toxic and explosive gas concentrations to ensure safety in these locations.
    5. Emergency response: YT-95H are often used in emergency response situations, such as fires, leaks, and other accidents. They can quickly detect dangerous gases and provide early warning to help rescue personnel take appropriate action.
