Lightweight Multi gas detector calibration certificate nirtrogen N2
for food protection
Product overview

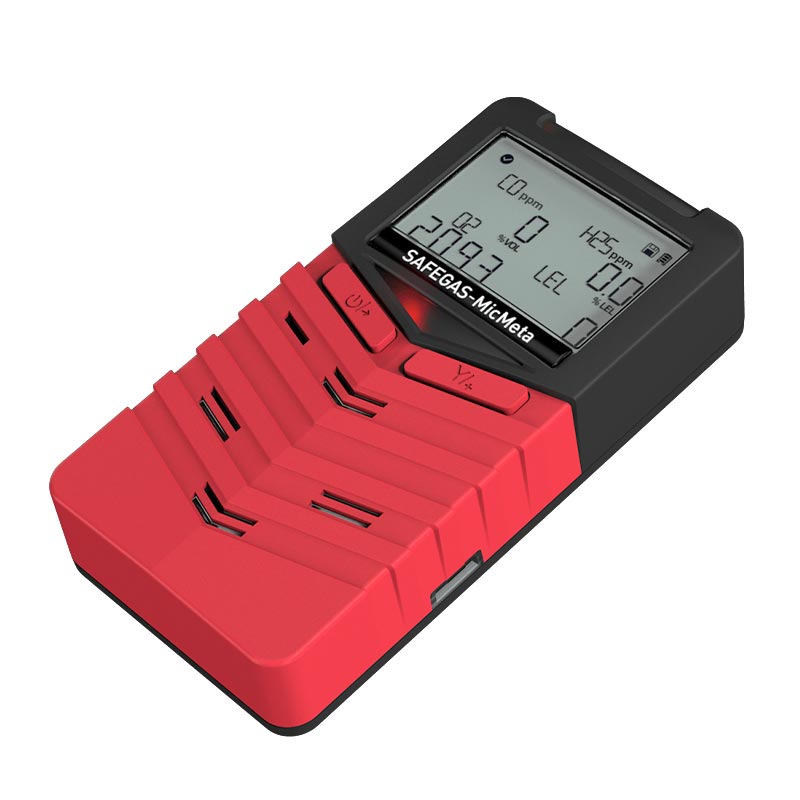

MicMeta is an IECEx/ATEX/EMC certificated portable multi gas
detector, which is diffusion type. The protection degree of Micmeta
is IP68 for unmatched water protection. With explosion proof grade
Ex ia I Ma, Ex ia IIC T4, it can be used in coal mines. With
standard data logger, real time data and alarm events can be export
to PC directly. It also support optional function with wireless
communication so user can access to data remotely.
Product Advantages
- IP66/IP68 water & dust resistant and 1.5 meters drop resistant
case, rugged and durable designs
- Compact, lightweight, small size with back clip, ergonomic and
wearable design
- Standard man down alarm, password protection, ID identification
function
- Real time value, TWA, STEL, MAX, MIN multiple numerical display
- With self-test function, which can improve safety by automatic
self-test
- One press to restore factory settings
- Support firmware upgrade remotely
- With docking station to perform daily bump test and calibration
(Optional)
- Wireless data transmission including Lora, Bluetooth (Optional)
- With rechargeable lithium polymer battery, extended 24hour battery
runtime
- Support PPM and mg/m3 gas unit switch by one key
Product specification
| Sampling method | Diffusion |
| Gas type | N2 |
| Measure range | 0-100%vol |
| Resolution | 0.01%vol |
| Response time | ≤60S (T90) |
| Precision | ≤±5%FS or ±10% (depends on the specific sensor |
| Language | Chinese/English |
| Automatically test and calibrate after power-on | Including auto-test, calibration, auto-zero, maximum value (MAX),
minimum value (MIN), STEL, TWA value |
| Unit | PPM and mg/m³ can be switched and displayed by one key, and the
concentration value is automatically converted by the system |
| Disaply | Segment code LCD display |
| Calibration platform | Modification, function testing and calibration operations can be
performed on DKM-MicMeta docking station (optional) |
| Data record | 1000 sets data records and 100 sets events records |
| Alarm | 95dB buzzer (@30cm), vibration alarm and flashing red bars and
alarm status indication on the screen, alarm latched; diagnostic
alarm and battery under voltage alarm, man down alarm, alarm set
points for all sensors are user adjustable. |
| Battery | 3.7V rechargeable lithium battery, battery capacity 2300mA |
| Working hours | Standby time 18h, charging time <6h |
| Wireless transmission | Bluetooth transmission function (optional), Lora transmission
function (optional) |
| Explosion-proof grade | CNEX:Ex ia IIC T4 Ga |
| (EU regulations) | 2004/108/EC(EMC), 94/9/EC(ATEX), CE |
| Protection grade | IP66/IP68 |
| Working temperature | -20°C~55°C |
| Humidity | 0-95%RH (non-condensing) |
| Environmental pressure | 86～106Kpa |
| Size | 113*60*32mm (length * width * height) |
| Weight | 200g (with lithium battery) |
Compact and Lightweight: This sturdy and long-lasting device is designed for optimal
portability and convenience, making it effortless to carry and
operate.
User-Friendly Operation: The device boasts an ergonomic design with a simple two-button
interface for easy operation.
Bright Visual Alarm: A broad-angle visual alarm LED display ensures excellent
visibility, enabling easy identification and response to alarms or
notifications.
Superior Dust and Water Resistance: With an IP66/IP68 rating for dust and water resistance, the device
provides maximum protection against dust and water intrusion,
guaranteeing reliable performance in harsh conditions.
Durable Construction: The robust build of the device can endure drops of up to 1.5
meters, offering enhanced durability and longevity, even under
intensive use.
EMC Tested: The device has successfully passed EMC anti-static interference
tests, ensuring dependable performance in a variety of
environments, both static and dynamic.
Ergonomic Design: The device features a comfortable, wear-resistant back clip that
can be easily attached to clothing or belts, offering additional
convenience and ease of use.
Company profile
Established in 2010, Shenzhen YuanTe Technology Co., Limited is a
company that focuses on the design, production and sales of
high-end gas detection equipment and system for 16 years. With gas
detector as the core product, we have completed production line and
solutions according to different industries, such as Oil, Chemical,
Medicine, Energy, Environmental Protection, Electronic, Municipal
Engineering, Agriculture and
Forestry, Household Appliances, etc. Through about 10 years of
rapid development, Yuante becomes the influential supplier.
Industry Application
Park, woodland, Municipal Engineering, Ports, warehousing,
airports, Railway tunnel, Community, school, hospital, other urban
construction
Services:
1. One year free warranty.
2. All machines are debugged before shipment.
3. Lifetime technical support and service.
4. 24 hours on line or phone or by email technical support.
5. We offer detailed machine manual and software manual.
