    Wall Mounted CO NOX VOC HF Toxic Gas Detector With Temperature Humidity Display

    Ask Lasest Price
    Brand Name : SZYUANTE
    Model Number : YT-98H-A
    Certification : IECEX/ATEX/CE
    Price : Negotiable
    Payment Terms : T/T, Western Union, Credit Card
    Supply Ability : 100 pieces/week
    Delivery Time : 3-5 working days
    • Product Details
    • Company Profile

    Wall Mounted CO NOX VOC HF Toxic Gas Detector With Temperature Humidity Display

    Wall-mounted CO NOX VOC HF toxic gas detector with temperature humidity display



    Company profile

    Established in 2010, Shenzhen YuanTe Technology Co., Limited is a company that focuses on the design, production and sales of high-end gas detection equipment and system for 13 years. With gas detector as the core product, we have completed

    production line and solutions according to different industries.


    What is our advantage

    4.Our products have obtained IECEx and ATEX explosion-proof certification, so our detectors can be used in hazardous areas such

    as mines, underground and oil plants, etc. We are the first and only manufacturer in China to obtain this certification. Products without explosion-proof certification are prohibited to be used in hazardous areas.


    5.As our core components, IC or sensors are used imported brands such as Honeywell, CITY and Alpha, etc., which make our products with high precision and stabilize the life of the products. It ensures the accuracy of detection and escorts the life safety of customers.


    6. Our complete product line and stable inventory provide customers with fast delivery time. We can ship it out within 3 days for the quantity of less than 10 pieces. Even for the mass production of 100 pieces, we can complete within half a month.


    Product Overview

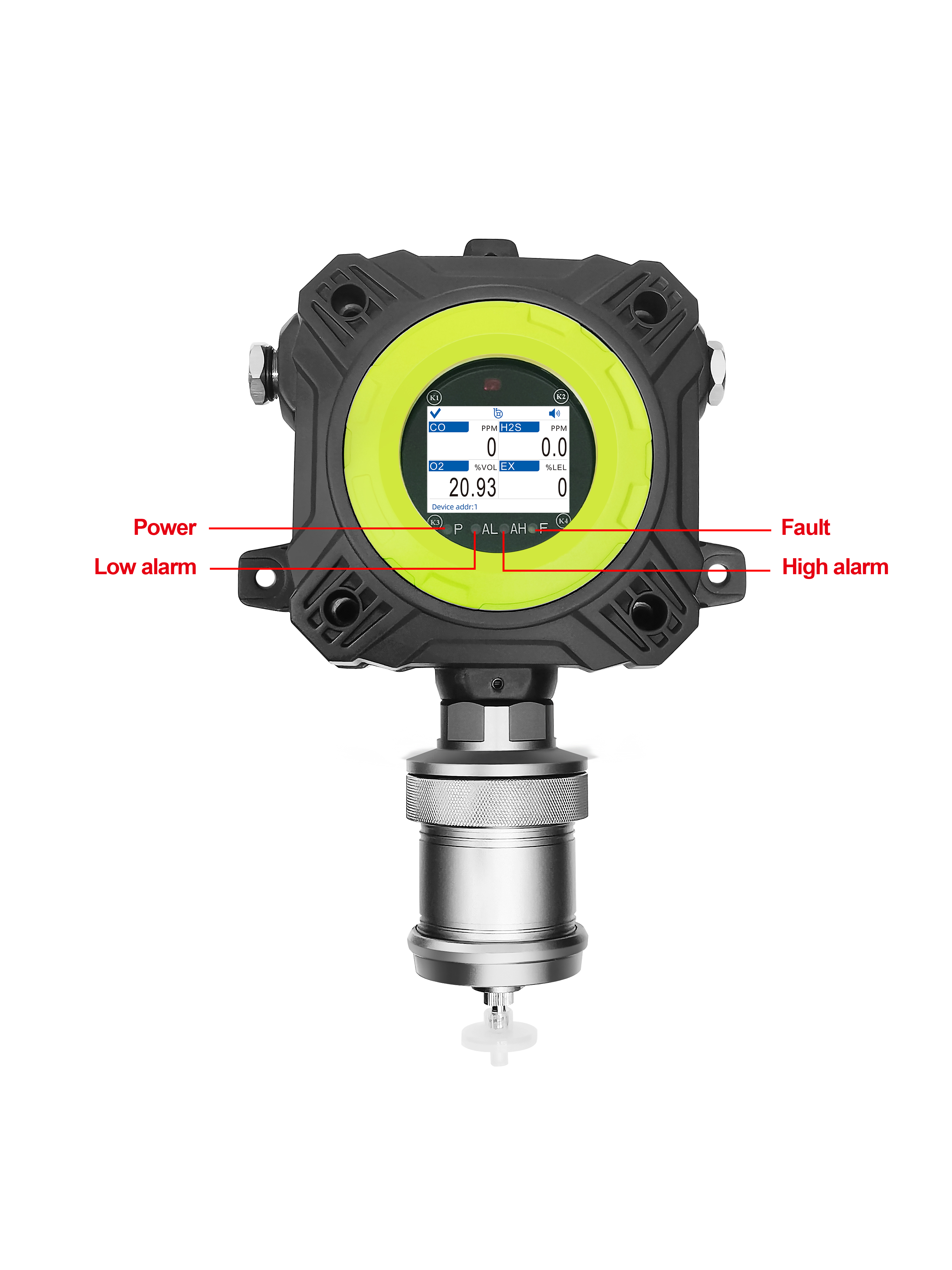

    The YT-98H series is a an IECEX/ATEX/EMC certified fixed multi gas detector which can simultaneously detect 1-6 types of gases 24h continuously monitoring. It is with built-in pump and the sensors inside detector are imported from world top brands, ensuring fast response and high accuracy. Using a 2.4-inch high-definition color screen to display on-site concentration in real-time. YT-98H-A has standard 4-20mA current signal, RS485 modbus signal and relay signal output for remote data transmission.



    Specification

    Gas detectedCO NOX VOC HF
    Detection principleElectrochemistry
    Install methodWall-mounted, piping type, flow-type (according to the detected environment)
    Measure rangeCustomrized
    ResolutionCustomrized
    Precision± 3% FS
    Signal output4-20mA, 0-5V, RS485, relay(optional)
    Response time≤10SRecovery time≤10S
    Repeatability≤±1%Linearity error≤±1%
    Zero shift≤±1%(FS/year)Display
    2.4 inch color display, resolution 320*240
    Wireless output (optional):
    Wireless transmission function, provide SMS Alert, can upload data to the platforms, and transmit signals without distance limitation(optional)
    Unitppm, mg/m³, %vol
    Temperature-20 to 50°CHumidity0-95%RH
    Explosion-proofEx db ⅡC T6 GbDegree of protectionIP66
    AlarmSound, light
    Language:
    Chinese / English
    Dimensions
    (H x W x D) 320*210*110mm
    Weight3.4kg


    YT-98H-A Product advantages


    1. Up to 6 kinds of gases can be detected at the same time.
    2. In complex and multi-gas environments, multiple installations can be reduced, saving time and effort
    3. 2.4-inch industrial-grade high-definition color screen with a resolution of 320*240 and a wide viewing angle of 120 degrees
    4. With wireless module, data can be uploaded to the cloud platform, environmental protection bureau or other platforms, providing SMS reminder function, the transmission signal is not limited by distance, and can be viewed in real time on mobile phones andcomputers.(optional)

    The internal structure of YT-98H



    More Application:

    • Furniture, Floor, Wallpaper, Coating, Gardening, Interior Decoration and Renovation, Dyestuff, Papermaking, Pharmacy,
    • Health Care, Foodstuff, Antiseptic.
    • Disinfection, Chemical Fertilizer, Resin, Adhesive, Pesticide, Raw Material, Sample, Technological Process,
    • Livestock Farm, Refuse Processing Plant, Perm Place.
    • Bio-pharmaceutical Plant, Green Household, Livestock Breeding, Green House Cultivating, Warehouse Logistics,
    • Brewing And Fermentation, Agricultural Production.
