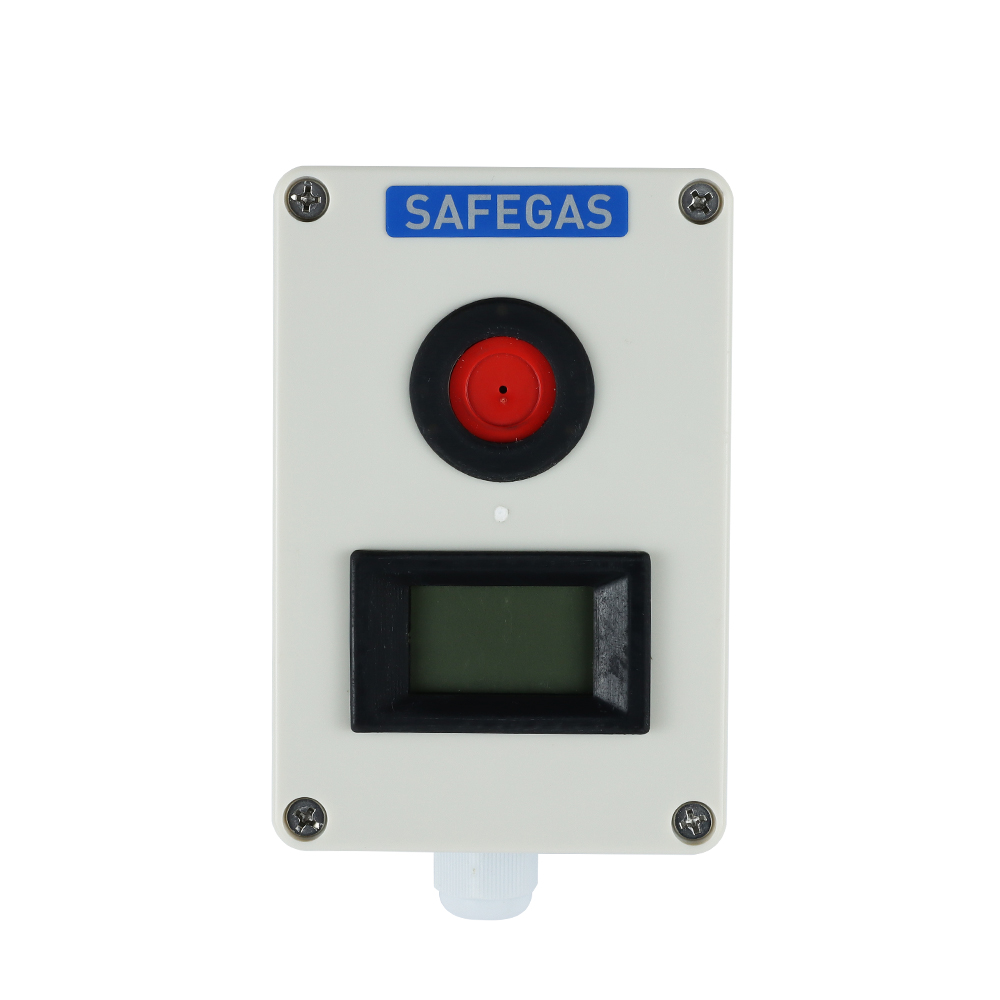

    Wall Mounted 0-1ppm Ozone O3 Leak Gas Monitor Non Explosionproof For Disinfection

    Ask Lasest Price
    Brand Name : YuanTe
    Model Number : YT-96H
    Certification : CE ISO9001-2015
    Price : Negotiable
    Payment Terms : T/T, Western Union, Credit Card
    Supply Ability : 500PCS/DAY
    Delivery Time : 2-3 days
    • Product Details
    • Company Profile

    Wall Mounted 0-1ppm Ozone O3 Leak Gas Monitor Non Explosionproof For Disinfection

    Non Explosionproof Wall-mounted 0-1ppm Ozone O3 Leak Gas Monitor for Disinfection


    Product Overview


    YT-96H/YT-96-A serial is an online monitoring fixed detector and specially designed for disinfection field like medicine clean room. It’s small and light, fast response, accurate detection, reliable operation and convenient for maintenance. And it’s non-explosion-proof design so need to be installed in non-explosion-proof workplaces.


    Product Advantages

    • All sensors utilize imported brand electrochemical principles.
    • A standard three-wire 4-20mA analog signal, along with an RS485 signal output, is used.
    • These are compatible with various control panels, PLC, DCS, and other control systems, enabling remote monitoring.
    • A set of relay signals comes as standard equipment, capable of controlling peripheral sound and light alarms, fans, solenoid valves, and other devices.
    • The PC software can be used for settings, calibration, and remote monitoring.
    Specification
    Detected gas:
    Ozone, etc, according to customer's requirements.
    Detection principle:
    Electrochemicstry
    Measure range:
    0-1ppm, 0-5ppm, 0-10ppm, 0-20ppm, 0-50ppm, 0-100ppm, etc, according to customer's requirements.
    Resolution:
    0.001ppm, 0.01ppm, 0.1ppm, 1ppm, etc, according to sensor and measure ranges.
    Accuracy:
    ≤±1-2%F.S.
    Response time:
    ≤30 seconds (T90)
    Display:
    Segment LCD
    Shell material:
    Flame Retardant Thermoplastic PS
    Concentration unit:
    ppm, mg/m3
    Alarm mode(Optional):
    Buzzer and light, high and low alarm values can be set by customer.
    Signal output:
    4-20mA, RS485, 1 set of relay output; 1-5VDC(optional)
    Communication and data download:
    With PC software, history data can be downloaded, stored, printed, and analyzed in computer (optional)
    Installation method:
    Wall-mounted
    Power supply:
    24VDC
    Language:
    English
    Humidity:
    0~95%RH (non-condensing)
    Temperature:
    -20℃~+50℃
    Working pressure:
    91~111kpa
    Size:
    80.2*145*62.2mm
    Weight:
    230g (without packaging)



    Accessories List


    Standard accessories

    1.Wall-mounted gas monitor 1pc

    2.Calibration cap 1pc

    3. Instruction manual 1pc

    4. Certificate of conformity 1pc


    Optional accessories

    Alarm light, 24V DC adapter etc.
