Emission gas leak monitor pump sampling with cooling temperature
probe
Company profile
For years, Yuante always insists on the management concept
Market is Orientation;Innovation is motivation; Quality to
survival;
Development to growth”. With friendly, open and strict corporate
culture and standardized management, Yuante gathers a lot of
talents, and builds up the management team and R&D team.
All the staff cooperates well in product development,
production and maintenance, and has a deep understanding
of the concept of customer oriented ”and has the service spirit
through the company operation and management, to win the
trust and support from custmers.
SKY8000 Product profile
SKY8000 series gas analyzer is a data collector which
can quickly acquire and analyze gas concentration
components in factory, scientific research, university and
complex working environment. There are 4 different
version to support different applications including
SKY8000-M gas analyzer to monitor gases in ambient
environment; SKY8000-AQ air quality gas analyzer to
monitor gases, particle counter, dew point, temperature
and humidity; SKY8000-OU odor gas analyzer to monitor
H2S, NH3,odor ;SKY8000-EM emission gas analyzer to
monitor high gas concentration gases in flue gas environment.

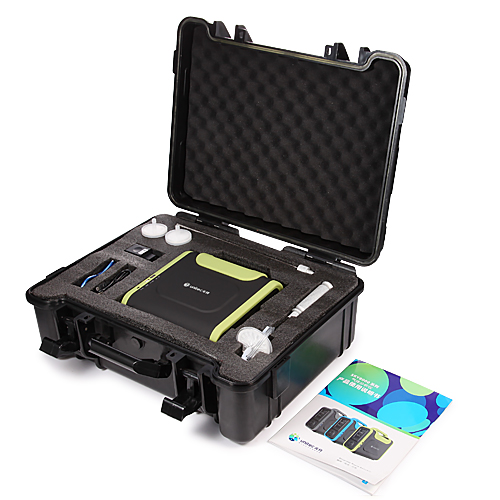

Portable Multigas Emission Analyzer Specification
| Sensors | Professional Flue Sensor, Electrochemistry, PID, IR, Catalytic
combustion |
| Measure range | 0-1000ppm, 0-2000ppm, 0-5000ppm, 0-10000ppm, 0-50%VOL (Measure
range is optional and customized) |
| Resolution | 1ppm |
Display | Formula, gas concentration data, measurement trend curve, gas
curve, battery, time, temperature, humidity, pressure (optional),
pump condition, wireless status, printer status, screen shot status |
| Alarm | Buzzer, red LED and alarm status on the display, fault alarm, pump
abnormal alarm, low battery alarm |
| Data storage | Independent SD memory card, Max.32G, measurement data can be record
automatically, customizable record time interval. |
| Data transmission and download | RS232,RS485 signal output, USB interface data transmission, with
the upper computer software, can download storage, analyze and
print data |
| Print function(Optional) | Optional with internal portable printer or external Bluetooth
printer |
| Print content(Optional) | Text, graphics, one-dimensional code, two-dimensional code, curves,
characters, etc. |
Charger | Standard Mini-USB charging port. With 13V/2A special charger
(built-in printer) or 5V/2A universal charger (external printer ) |
| Language | Chinese/English |
| Wireless network (optional) | Bluetooth, Zigbee |
| Network frequency | 2.4G high frequency. |
| wireless transmission distance | Bluetooth is less than 10m, and the ZigBee outdoor single point is
less than 500m. |
Portable Multigas Emission Analyzer Features
Accurate and reliable
Multi-display mode
Comprehensive functions
Data logging
Mobile recharging and long operation time
High quality material
Application
- Confined space, research and high standard test environment,
- Complex environment of multiple gases
FAQS
- Can I have a sample order? Yes, we welcome sample order for to test
and check quality
- Do you have a MOQ limit? No, we don't, one piece is also welcomed
- .What is the payment terms? Visa,Mastercard, e-checking, T/T,
Western Union, Alipay.
- What certificate do you have? ATEX, IECEX, CE, ISO, CNEX explosion
proof, CMC, if you have any other requirement with certification,
we also would like to help you.
- How about packing? Aluminum suitcase, carton box
Industry Application
Park, woodland, Municipal Engineering, Ports, warehousing,
airports, Railway tunnel, Community, school, hospital, other urban
construction
