Safegas Fixed Gas Detector CO EX O2 H2S H2 NO NO2 Single Gas
Detector
YT-95H series gas detector(with alarm light) is a kind of
monitoring gas concentration in different kinds of situations or
pipelines 24h continu- ously wall mounted type gas detector. Using
world first brand sensors, and advanced micro-process technology,
with data display and high/low alarm, fast response, high precision
and good stability. Powered by 24V DC, with 4-20mA, RS485, relay
signal output. Explo-sion proof, suitable for different kinds of
situations.
Characteristics & Functions
1. Being compatible with all kinds of controlled alarms, PLC, DCS
and other control system, can be remote monitored.
2. Explosion-proof design, fast, reliable and stable. Explosion-proof grade: Ex d II CT6
3. With self-calibration function, and three standard keys will be
used to realize on-site maintenance.
4. Monitor the ammonia gas concentration in environment or pipeline
and alarm.
5. Two-stage alarm with sound and light, alarm point is settable.
6. Infrared ray controller can remote control alarm point settings,
zero calibration, and address modification.
7. Can output one or two on-off signals, can drive ventilator or
solenoid valve and other external devices.
| Gas Detected | H2S, CO, CO2, O2, CH4, etc |
| Detection principle | Electrochemistry, IR, LEL, PID |
| Install methode | Wall-mounted, piping type, flow-type(according to the detected
environment) |
| Measure Range | optional |
| Resolution | optional |
| Precision | ≤± 3% F.S. |
| Signal Output | 4-20MA, RS485, relay |
| Response Time | ≤10S | Recovery Time | ≤10S |
| Repeatability | ≤±1% | Linearity error | ≤±1% |
| Zero shift | ≤±1%(F.S/year) | Display | High light nixie tube display |
| Operating language | G1/2 external thread explosion-proof flexible pipe | Gas unit | ppm |
| Temperature | -20ºC~50ºC | Humidity | 0-90%RH |
| Explosion-Proof | Ex d II CT6 | Degree of protection | IP65 |
| Alarm mode | Sound, light | Operating time | 24h |
| Dimensions | 180*150*90mm | Weight | ≤1.6kg |
Company Profile
Our company Shenzhen Yuante Co., Ltd is specializing in the
production, research and development of gas detector for more than 10 years. We have ATEX, IECEx, CE and ISO certificate. Main product have SKY2000, SKY3000, SKY6000, SKY8000,
YT-95H and YT-1200H. We have portable one and fixed one. Welcome to
consult.

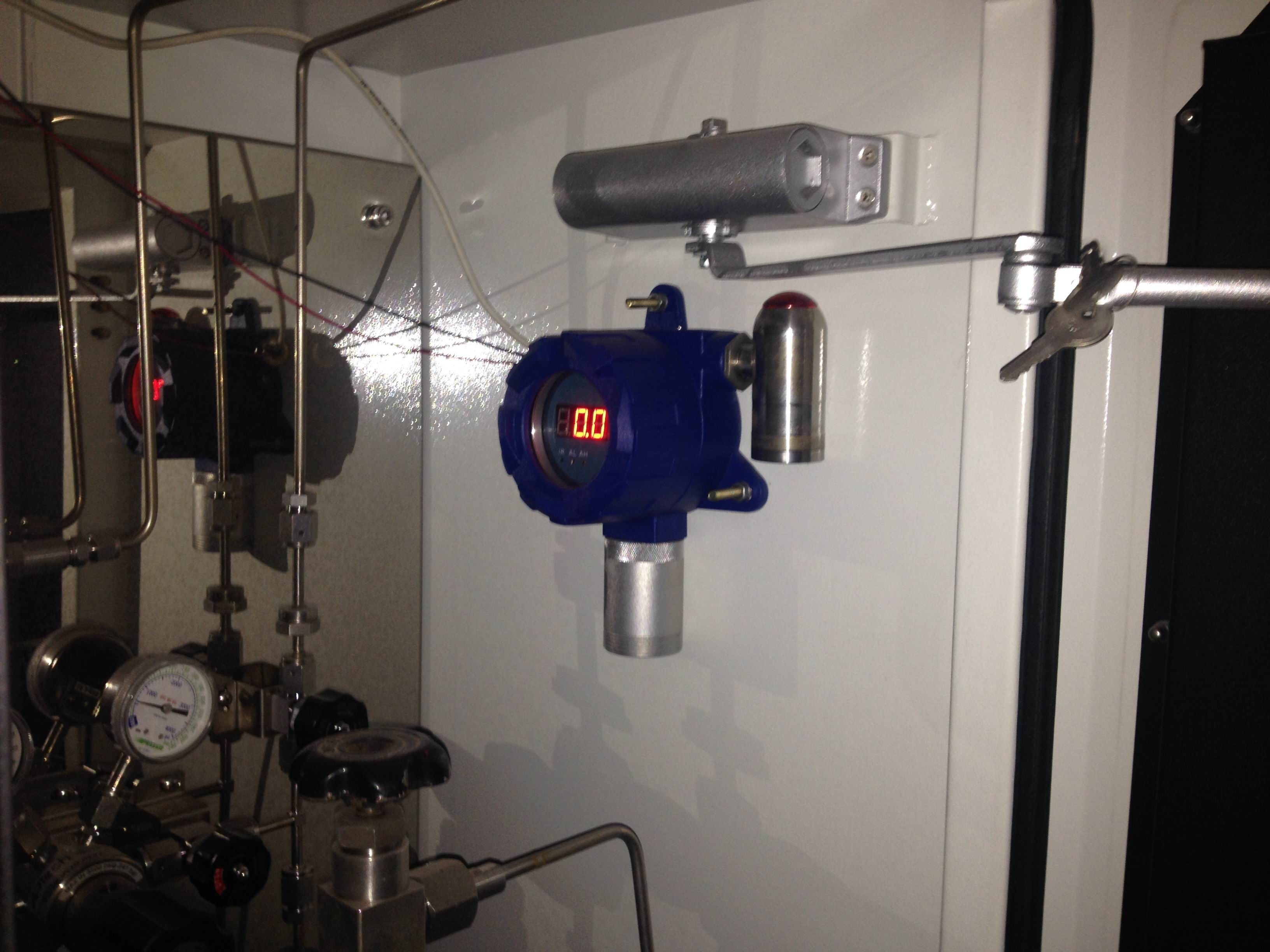

Installation
More Application
Furniture, Floor, Wallpaper, Coating, Gardening, Interior
Decoration and Renovation, Dyestuff, Papermaking, Pharmacy, Health
Care, Foodstuff, Antiseptic.
Disinfection, Chemical Fertilizer, Resin, Adhesive, Pesticide, Raw
Material, Sample, Technological Process, Livestock Farm, Refuse
Processing Plant, Perm Place.
Bio-pharmaceutical Plant, Green Household, Livestock Breeding,
Green House Cultivating, Warehouse Logistics, Brewing And
Fermentation, Agricultural Production.
