SO2 Gas Monitor Sulphur Dioxide Gas Monitor SO2 gas detector Analyzer SO2 4-20mA RS485 UK Sensor

SO2 Sulphur Dioxide Gas detector has wide measuring range, high precision, good linearity, universal model, convenient use, easy installation and long transmission distance. It is widely used in industrial, agricultural, scientific research and other fields.

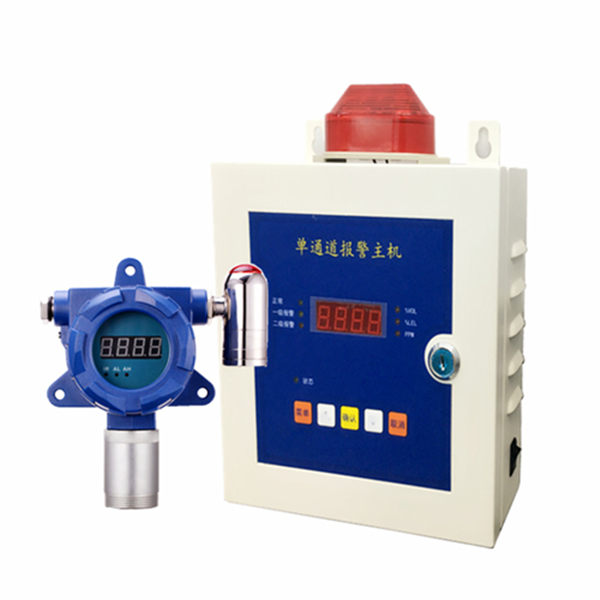

To make sure safety or air emission quality, we need to test SO2 Sulphur Dioxide leakage. If you want to test SO2 Sulphur Dioxide leakage, we suggest you use measure range 0-100ppm, resolution is 0.1ppm; If you want to test SO2 Sulphur Dioxide in air quality, we suggest you use measure range 0-10ppm, resolution is 0.001ppm. Besides, our wall-mounted SO2 Sulphur Dioxide Gas detector can be with controller panel, it can be connected with detectors, the readings will show on the panel by 4-20mA or RS485 signal output.

Sulphur Dioxide SO2 Gas Monitor Advantages:

• Use imported US/UK original sensors to keep the high precision and fast response.

• Sandard equipped with three-wire system 4-20mA, RS485 and Inner Relay(24Vdc 50mA) output, external AC relay is optional;

• Infrared ray control function, which can non-contacted control the detector. Being compatible with all kinds of controlled alarms, PLC, DCS and other control system.

• Explosion-proof design, fast, reliable and stable.

• Explosion-proof grade: II 2G Ex db IIC T6 Gb IP65

• With self-calibration function and three standard keys will be used to realize on-site maintenance.

Sulphur Dioxide SO2 Gas Monitor Features:

• Monitor the Sulphur Dioxide SO2 gas concentration in environment or pipeline and alarm.

• With self-calibration and zero calibration function to make sure the detection more accurate and reliable.

• With temperature compensation, this is able to realize gas concentration compensation under conditions of different temperatures.

• Two-stage alarm with sound and light, alarm point is settable.

• Infrared ray controller can remote control alarm point settings,

• zero calibration, and address modification.

• Can output one or two on-off signals, can drive ventilator or

• solenoid valve and other external devices.

• Working Voltage:12-36V DC

• Case:die-cast aluminum + stainless steel (alarm light)

Sulphur Dioxide SO2 Gas Monitor Specification
