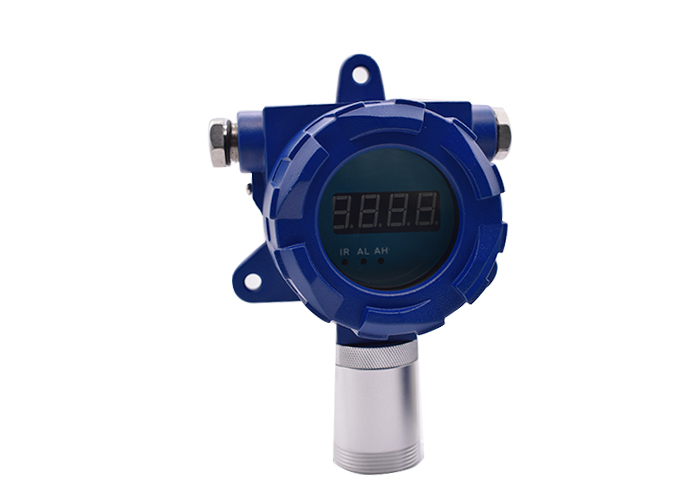

NF3 Nitrogen Trifluoride Toxic Gas Detector 0-50PPM Fixed Diffusion

Shenzhen YuanTe Technology Co., Ltd. (Safegas)
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap NF3 Nitrogen Trifluoride Toxic Gas Detector 0-50PPM Fixed Diffusion from wholesalers

    Buy cheap NF3 Nitrogen Trifluoride Toxic Gas Detector 0-50PPM Fixed Diffusion from wholesalers
    • Buy cheap NF3 Nitrogen Trifluoride Toxic Gas Detector 0-50PPM Fixed Diffusion from wholesalers

    NF3 Nitrogen Trifluoride Toxic Gas Detector 0-50PPM Fixed Diffusion

    Ask Lasest Price
    Brand Name : SZYUANTE
    Model Number : YT-95H-NF3
    Certification : ATEX/CE
    Price : Negotiable
    Payment Terms : T/T, Western Union
    Supply Ability : 100 pieces/week
    Delivery Time : 3-5 working days
    • Product Details
    • Company Profile

    NF3 Nitrogen Trifluoride Toxic Gas Detector 0-50PPM Fixed Diffusion

    Fixed Diffusion Type NF3 Nitrogen Trifluoride Toxic Gas Detector 0-50PPM With 4-20mA Output


    Product Overview


    YT-95H series gas detector(with alarm light) is a kind of monitoring gas concentration in different kinds of situations or pipelines 24h continuously wall mounted type gas detector. Using world first brand sensors, and advanced micro-process technology, with data display and high/low alarm, fast response, high precision and good stability. Powered by 24V DC, with 4-20mA, RS485, relay signal output. Explosion proof, suitable for different kinds of situations


    Features

    • Two-stage alarm with sound and light, alarm point is settable.
    • Infrared ray controller can remote control alarm point settings, zero calibration, and address modification.
    • Can output one or two on-off signals, can drive ventilator or solenoid valve and other external devices.
    • Working Voltage:12-36V DC
    • Case:die-cast aluminum + stainless steel (alarm light)

    Product Advantages

    • 1. Being compatible with all kinds of controlled alarms, PLC, DCS and other control system, can be remote monitored.
    • 2. Explosion-proof design, fast, reliable and stable. Explosion-proof grade: Ex dⅡCT6
    • 3. With self-calibration function, and three standard keys will be used to realize on-site maintenance.

    Specification

    Gas detectedNF3
    Detection principleElectrochemical
    Install methodWall-mounted, piping type, flow-type (according to the detected environment)
    Measure range0-50/100PPM
    Resolution0.01PPM
    Precision± 2-5% FS
    Signal output4-20mA, 0-5V, RS485, relay(optional)
    Response time≤10SRecovery time≤10S
    Repeatability≤±1%Linearity error≤±1%
    Zero shift≤±1%(FS/year)DisplayHigh-light nixie tube display
    Connection modeG1/2 external thread explosion-proof flexible pipeUnitppm, mg/m³, %vol
    Temperature-20 to 50°CHumidity0-95%RH
    Explosion-proofEx dⅡCT6Degree of protectionIP65
    AlarmSound, lightOperating time24H
    Dimensions180*150*90mmWeight≤2kg
