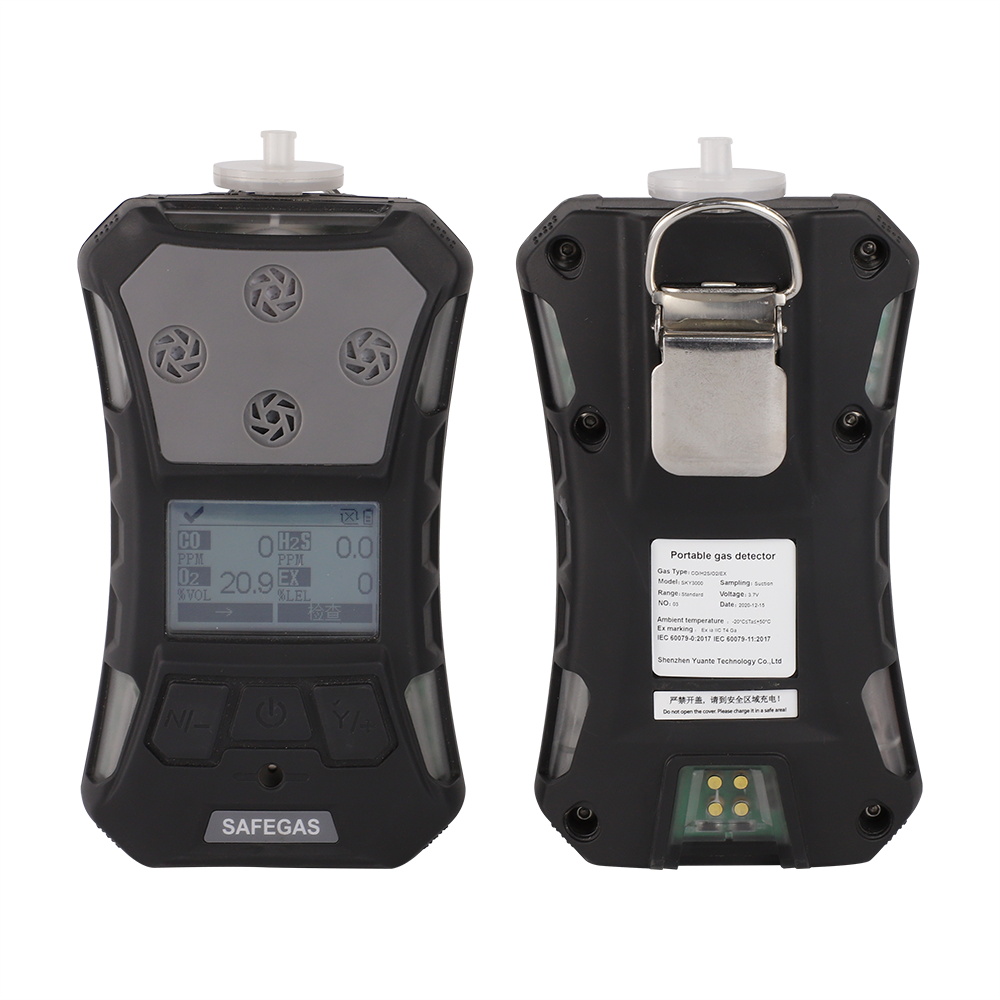

IECEX ATEX Certificated Handheld Multi Gas Detector for LEL O2 H2s Co Gases Detection​

Product advantage

1. Rugged and durable, protection level IP67, can pass three-meter drop test and EMC anti-static interference test. It's also IECEX, ATEX certified, explosion-proof level reaches Exia IICT4 Ga
2. Multiple security protection including man down alarm function, password protection function, safety reminder function, alarm function, high and low alarm latched function upgrades the safety of operators.
3. Simultaneous upto 4 gas can be monitored, multiple numerical display including real-time data, TWA, STEL, MAX, MIN multiple numerical.
4. The screen can be automatically turned 180 degrees, which is convenient for viewing in special operating environments
5. Built-in powerful sampling pump, fast detection speed. It can be connected to 20m sampling tube externally, which is convenient for long-distance or confined space detection.
6. Pump suction and diffusion dual use, to provide operators with more reliable protection
7. With a water trap filter, it can effectively filter water, oil, dust and other impurities. It can also be used in harsh industrial environments such as coal mines and petroleum fields.
8. Optional Bluetooth function, data can be transmitted to the mobile phone or PC in real time
9. Standard storage function, one-click data export, convenient for users to analyze
10. automatic prompts for voltage and pump failure alarms makes it more user friendly.
11. Support PPM and mg/m³ gas unit switch, the concentration value is automatically converted by the system.
12. Support multiple language switch.

Specificiation

Sampling method	pump suction & diffusion dual-use type
Gas type	Oxygen, Combustible gas, Carbon monoxide, Hydrogen sulfide
Measure range	0-30%VOL,0-100%LEL,0-1000PPM,0-100PPM
Resolution	0.01%VOL,1%LEL,1PPM, 0.01PPM
Response time	≤30 seconds
Precsiion	≤±2%F.S
Language	Chinese/English
Automatically test and calibrate after power-on	Including reset, maximum value (MAX), minimum value (MIN), STEL, TWA value
Unit	PPM and mg/m³ can be switched
Disaply	monochrome graphics (160 x96) ,screen can be automatically flipped
Backlight	The backlight time can be manually set, and will be turned on automatically when an alarm is issued
Data record	Can store 100,000 sets data, the storage interval is adjustable from 5 to 3600 seconds, data can be exported
Alarm	95dB buzzer (@30cm), vibration alarm and flashing red LED and alarm status indication on the screen, alarm latched; diagnostic alarm and battery undervoltage alarm, pump block alarm; man down alarm, with early warning and optional real-time remote Bluetooth notification function
Battery	3.7V rechargeable lithium battery, battery capacity 2200mA
Working hours	More than 15 hours in continuous pumping mode
Charger	Travel charger with DC interface, charging time ≥ 4 hours
Explosion-proof grade	IECEX/ATEX(II IG Ex ia IIC T4 CNEX:Ex ia IIC T4 Ga
Certification (EU regulations)	2004/108/EC(EMC) 1995/5/EC(Radio) 94/9/EC(ATEX)
Protection grade	IP67
Working temperature	-20ºC~+50ºC
Humidity	0~90%RH(no condensation)
Environmental pressure	86~106Kpa
Size	157*84.5*59.5mm (including back clip/water trap filter) (length * width * height)
Weight	365g (including battery, belt clip and filter)

You can download the catalogue from below link:

Catalogue-SKY3000-M4(CO,H2S,LEL,O2) in 1 gas detec...

Package

FAQ

1. Do you offer guarantee for the products?
-- Yes, we offer one year guarantee for the products.
2. Can you produce according to customers' design?
--Yes,We are factory with our own R&D team.
Customized color and special function of gas detection tools.
Customized box.
Your other ideas about gas detection tools, we can help you design and put them into production.
Different language files. such as English, etc. according to customers requirement.
3. Is it OK to print my logo on the gas detector?
Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
4. How do you sure the quallty of products?
Our company owns the core technology ,all kinds of products hold qualification certificate.
