    Online Fixed 0-1000ppm H2 Single Gas Detector Hydrogen Gas Leak Detector H2 Sensor

    Ask Lasest Price
    Brand Name : YuanTe
    Model Number : YT-95H-A-H2
    Certification : CE ATEX CNEX ISO9001-2015
    Price : Negotiable
    Payment Terms : T/T, Western Union, Credit Card
    Supply Ability : 500PCS/DAY
    Delivery Time : 2-3 days
    • Product Details
    • Company Profile

    Online Fixed 0-1000ppm H2 Single Gas Detector Hydrogen Gas Leak Detector H2 Sensor

    Online Fixed 0-1000ppm H2 Single Gas Detector Hydrogen Gas Leak Detector H2 Sensor


    Online Fixed 0-1000ppm H2 Single Gas Detector Hydrogen Gas Leak Detector H2 Sensor are widely use in power plant, utilities, petrochemical companies, nuclear power plants, fuel cell, petroleum and other industrial organizations.


    YT-95H-A-H2 hydrogen gas leak detector can provides the most accurate, tolerant and affordable hydrogen leak detection and process gas measurement solutions for industrial markets. It has dispaly and alarm function. The data can be read on the hydrogen gas sensor directly or can be transmitted to customer's control panels or PLC system by RS485 or 4-20mA signal.


    Online Fixed 0-1000ppm H2 Single Gas Detector Hydrogen Gas Leak Detector H2 Sensor Specification

    Gas detected

    H2 hydrogen

    Detection principle

    Electrochemistry

    Install method

    Wall-mounted, piping type, flow-type (according to the detected environment)

    Measure range

    0-1000ppm,0-2000ppm,0-10000ppm,0-40000ppm

    Resolution

    1ppm

    Precision

    ≤± 2-3% FS for normal sensor, ≤± 1% FS for high precision sensor

    Signal output

    4-20mA, 0-5V, RS485, relay(optional)

    Response time

    ≤10S

    Recovery time

    ≤10S

    Repeatability

    ≤±1%

    Linearity error

    ≤±1%

    Zero shift

    ≤±1%(FS/year)

    Display

    High-light nixie tube display

    Connection mode

    G1/2 external thread explosion-proof flexible pipe

    Unit

    %VOL

    Temperature

    -20 to 50°C

    Humidity

    0-95%RH

    Explosion-proof

    II 2G Ex db IIC T6 Gb IP65

    Degree of protection

    IP65

    Alarm

    Sound, light

    Operating time

    24H

    Dimensions

    180*150*90mm

    Weight

    ≤2kg


    Online Fixed 0-1000ppm H2 Single Gas Detector Hydrogen Gas Leak Detector H2 Sensor Advantages:

    • Employing overseas original sensor.
    • Sandard equipped with three-wire system 4-20mA, RS485 and Relayanalog output;
    • Unique infrared ray control function, which can non-contacted controlthe device. Being compatible with all kinds of controlled alarms, PLC, DCS and other control system, can be remote monitored.
    • Explosion-proof design, fast, reliable and stable.
    • Explosion-proof grade: II 2G Ex db IIC T6 Gb IP65
    • With self-calibration function and three standard keys will be used to realize on-site maintenance.


    Online Fixed 0-1000ppm H2 Single Gas Detector Hydrogen Gas Leak Detector H2 Sensor Features:

    • Monitor the specific gas concentration in environment or pipeline and alarm.
    • With self-calibration and zero calibration function, makes the detection more accurate and reliable.
    • With temperature compensation, this is able to realize gas concentration compensation under conditions of different temperatures.
    • Two-stage alarm with sound and light, alarm point is settable.
    • Infrared ray controller can remote control alarm point settings,
    • zero calibration, and address modification.
    • Can output one or two on-off signals, can drive ventilator or
    • solenoid valve and other external devices.
    • Working Voltage:12-36V DC
    • Case:die-cast aluminum + stainless steel (alarm light)

    On-site debugging

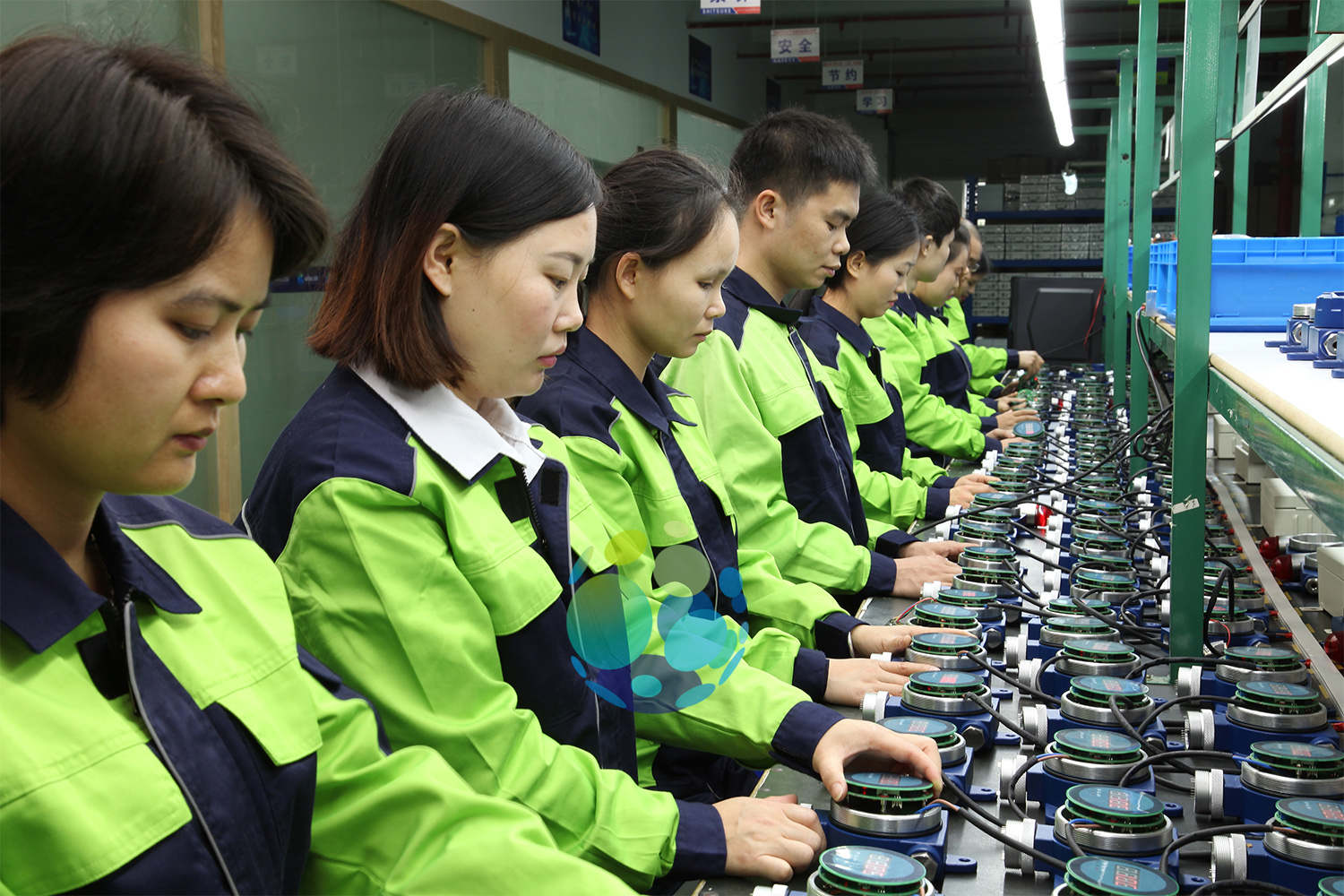

    Production line




    Our service


    1.For all our customers, our products have 1 year warranty, and life-long maintenance.


    2.All inquiries will be replied in 24 hours.


    3.We will provide technical support, our engineers will help to solve the problems you met. We can also provide video training, calibration support, and so on.


    4.We can provide OEM and ODM service.


    5.Our factory is located in Shenzhen city, welcome to visit our factory.


    6.All products will be well checked and well packed before shipment, and qualification certificatewill be provided.
